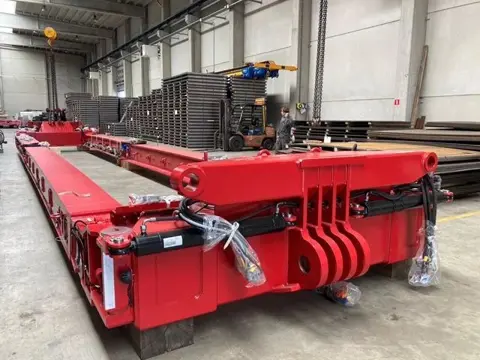

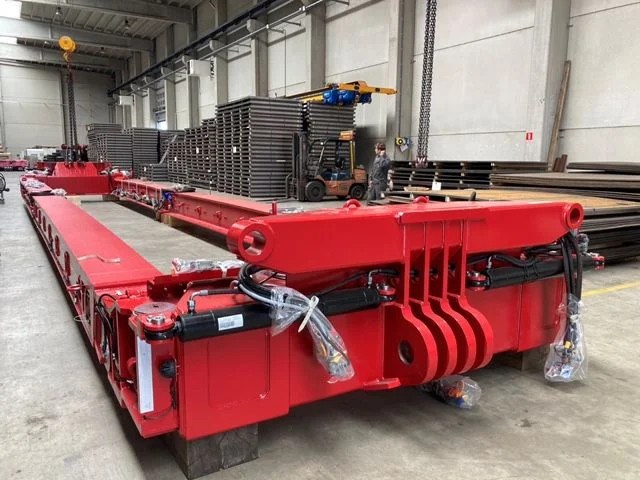

Faymonville G-Modul Vesseldeck (bj 2022)

Bouwjaar: 2022
Constructiejaar: 2022
Ledig gewicht: 18.500 kg
Afmetingen (LxBxH): 1900 x 60 x 45 cm
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed
Referentienummer: GTH.483
Neem voor meer informatie contact op met Stefan Schaapveld (+31572870040, [email protected])

Kleur : Rood
Laadvermogen : 430000 kg.
Uitschuifbaar

Manufacturer: Faymonville
Type: G-Module Vesseldeck
Year: 2022

Connectable to Goldhofer THP SL

Coupling Heads

G-Modul-SL lowbed coupling head
Hydraulic extendable
Basic width: 3.000 mm
Hydraulic widenable to 4.700 mm
Beam height: 450 mm
Coupling lenght: 1.200 mm
Weight: 4.500 kg
4 pairs of lashing rings (LC 16.000 daN
2 alignment pins
Control panel for hydraulic adjustments
Colour: RAL 3002

Telecopic Beams

1 pair telescopic beams
Lenght: 8.000 mm + 5.000 mm
Total lenght : 13.000 mm
Construction height: 450 mm
Beam width: 450/600 mm
Weight 9.600 kg
Lashing rings every 1.000 mm
LC 10.000 daN
430 MTO
Compression joint in front and rear
Colour: RAL 3002

Elongation Beams

1 pair of Elongation beams
Coupling lenght: 6.000 mm
Construction height: 450 mm
Beam width: 450/600 mm
Weight: 4.300 kg
Lasing rings every 1.000 mm
LC 10.000 daN
560 MTO
Compression joint in front and rear
Colour: RAL 3002

Coupling Pin

1 Hydraulic coupling pin for G-Modul
1 Connecting lines kit for coupling pin G-Modul
