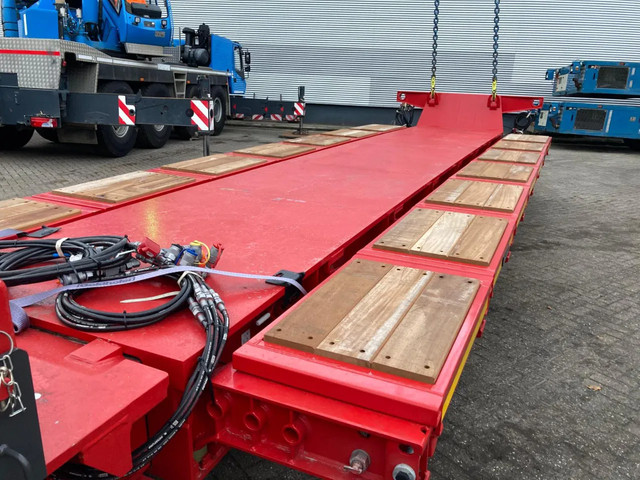

Goldhofer Spinebed BB 450 A (bj 2024)

Algemene informatie
Opbouw: Dieplader
Bouwjaar: 2024
Constructiejaar: 2024
Kleur: Rood
Referentienummer: BO.0788

Gewichten
Ledig gewicht: 14.400 kg
Laadvermogen: 120.000 kg
GVW: 134.400 kg

Functioneel
Afmetingen laadruimte: 800 x 135 x 45 cm
Hoogte laadvloer: 45 cm
Uitschuifbare opbouw: Ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Meer informatie
Neem voor meer informatie contact op met Stefan Schaapveld (+31572870040, [email protected])

Kleur : Rood

Manufacturer: Goldhofer
Type: Crawler deck / Spinebed BB 450 A
Chassis number: 2100788
Year: 2024 – NEW/ Unused

General
Extendable, from 8.000 mm to 13.000 mm
Payload classification 100t / 120t in combination 4+6
Design height 450 mm; length 8.000 mm, width 1.350 mm
Extendible in steps of 500 mm
At the rear lashing coupling for connection to THP-bogies
In the front claw couplings for connection to gooseneck or claw coupling adapter
Integrated supply lines for hydraulics, brake and electrics with connection couplings
Weight approx 14.400 kg

Loading security
1 pair lashing rings (LC = 30,000 daN) in the rear coupling head
8 pair lashing rings (LC = 20,000 daN) arranged at the outside of the outer beam

Side extensions
Fold out outriggers and inserts on the outer beam (basic length)
Fold out side extensions and mattresses on the inner tube

1 x Quick coupling adapter THP/SL
To connect the coupling claws of a deck to coupling lashes of a modular bogie or a Gooseneck
Deadweight 1.600 kg

1 x Drive on wedge for excavator deck in steel execution (4 pieces)
Weigth 360 kg
