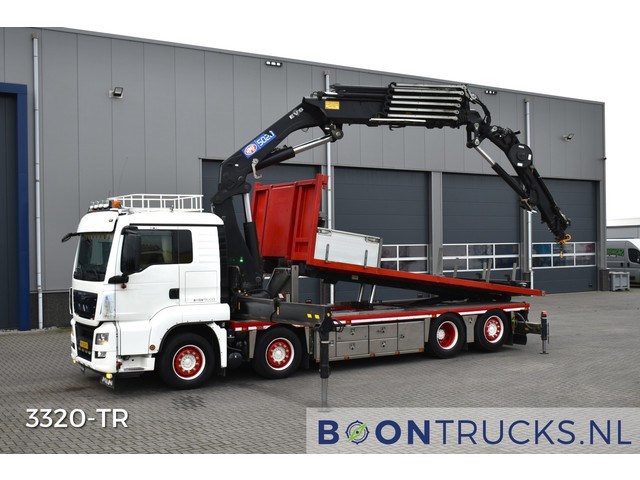

MAN TGS 440 8x2 + HMF 5020-K6 + FJ1000K4 | EURO6 * KABELSYSTEEM 30T * NL TRUCK * TOP!

General information
Brand: MAN
Model: TGS
Bodywork: Crane
Year of manufacture: Nov 2015
Year of construction: 2015
Mileage: 362.916 km
Cab: sleep

Technical information
Power: 324 kW (440 HP)
Number of cylinders: 6
Engine capacity: 12.419 cc

Drivetrain
AdBlue system: Yes

Transmission
Transmission: 12 gears, Automatic

Axle configuration
Axle configuration: 8x2
Brakes: disc brakes
Front axle 1: Tyre size: 385/55 R22.5; Max. axle load: 9000 kg; Steering; Tyre profile left: 100%; Tyre profile right: 100%; Suspension: leaf suspension
Front axle 2: Tyre size: 385/55 R22.5; Max. axle load: 9000 kg; Steering; Tyre profile left: 100%; Tyre profile right: 100%; Suspension: air suspension
Rear axle 1: Tyre size: 315/70 R22.5; Double wheels; Max. axle load: 11500 kg; Tyre profile left inner: 40%; Tyre profile left outer: 40%; Tyre profile right outer: 40%; Tyre profile right outer: 40%; Suspension: air suspension
Rear axle 2: Tyre size: 385/55 R22.5; Lift axle; Max. axle load: 7500 kg; Steering; Tyre profile left: 100%; Tyre profile right: 100%; Suspension: air suspension

Measures
Dimensions (LxW): 985 x 255 cm
Wheelbase: 725 cm

Weights
Empty weight: 22.620 kg
Carrying capacity: 14.480 kg
GVW: 37.000 kg
Max. towing weight: 50.000 kg

Functional
Dimensions of cargo space: 620 x 255 x 140 cm
Crane: HMF 5020-K6, year of manufacture 2015, behind the cab
Make of bodywork: H.T.S. KABELSYSTEEM 30 TON

Interior
Number of seats: 2
Number of beds: 1

Environment
Emission class: Euro 6

Condition
General condition: very good
Visual appearance: very good
Number of keys: 2

Identification
Reference number: 3320-TR
Registration number: 96-BGN-5
Serial number: WMA90SZZ8FM681274

• 1 Lift axle
• 3 steering axles
• 20 ft
• AdBlue
• Air horn
• Air suspension
• Beacon(s)
• Disc brakes
• EBS
• Extra work lighting
• Front View Camera
• Gullet
• High Beams
• NL registration
• Parking Heater
• Radio/CD player
• Rear view camera
• Refridgerator
• Steel suspension
• Toolbox
• With remote control

Structure
Construction year: 2015
Crane
Number of hydraulic extensions: 6
Number of support legs: 4
Remote control: ✓

Crane:
HMF: 5020 K6

Diagram:
4.70 mtr - 9.270 kg.
6.40 mtr - 6.460 kg.
8.30 mtr - 4,780 kg.
10.30 mtr - 3,700 kg.
12.30 mtr - 3,000 kg.
14.40 mtr - 2,500 kg.
16.70 mtr - 2,150 kg.

Fly jib FJ1000 K4

Hydraulic:

19.60 mtr - 1.170 kg.
21.20 mtr - 1.060 kg.
22.80 mtr - 970 kg.
24.60 mtr - 890 kg.
26.50 mtr - 760 kg.

Manually:

28.40 mtr - 595 kg.
30.30 mtr - 490 kg.

HTS Cable System - 30 tons


- Including glass jib
- Includes 20ft twistlock frame for loading HC container
