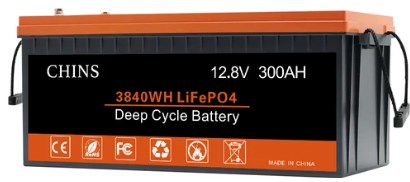

CHINS LiFePO4 Battery 12V 300Ah Lithium Battery

CHINS LiFePO4 Battery 12V 300Ah Lithium Battery - Built-in 200A BMS, Perfect for Replacing Most of Backup Power, Home Energy Storage and Off-Grid

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Mobile APP to Read Battery Data

CHINS smart lithium battery can directly communicate with the battery management system (BMS) and obtain various data (SOC) of the lithium iron phosphate battery.

Customers can connect to the battery through the mobile phone APP, and read the battery voltage, current, battery capacity and other important information at any time.

Wireless connection range: within 5-10 meters from the battery.

Heating Function

When the ambient temperature is lower than 32°F (0°C), the charging current will only supply power to the heating film inside the battery.

When the internal temperature of the battery reaches 50°F (10°C), BMS will immediately turn off the heating function, all the charging current charges the battery.

The charging current of the low temperature heating battery is at least 5A.

Deep Cycle Battery

CHINS LiFePO4 battery provides 4500+ cycles, the service life of LiFePO4 batteries is 7 to 10 times than the standard lead-acid batteries, can perfectly replace the traditional lead acid battery.

Built-In BMS

Our LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.

Capacity Expansion

This Lifepo4 battery can be connected in parallels and in series for larger capacity and voltage.

Max connection in series: Up to 4 identical batteries for up to 48V connecting in series.

Connection in parallels: it can connect multiple batteries, suggest no more than 4pcs in parallel.

Allow to be extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 400Ah) and higher voltage (24V, 36V, 48V). Other installation methods: 4S2P, 2S2P, 3S2P, etc.

Specification

General

Brand: CHINS
Type: LiFePO4 Lithium Battery
Model: Gre12300
Color: Orange

Specification

Rated Capacity (0.2C): 300Ah / 3840Wh
Cycle life: 2000+ cycles at 80% discharge depth
Rated voltage: 12.8V
Charge voltage: 14.2V - 14.4V
Depth of Discharge (DoD): 100%
Standard charge current: 60A
Charging time: Approximately 6 hours
Max continuous charge current: 100A
Max continuous discharge current: 200A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge -35 -50 celsius (-31 -122Fahrenheit),
Discharge -20-60 celsius (-4 -140 Fahrenheit), Storage -20 -50 celsius (-4 -122 Fahrenheit)
Impedance: ≤ 8mΩ

Weight & Size

Product Weight: 31.2kg
Product Size(L x W x H):
