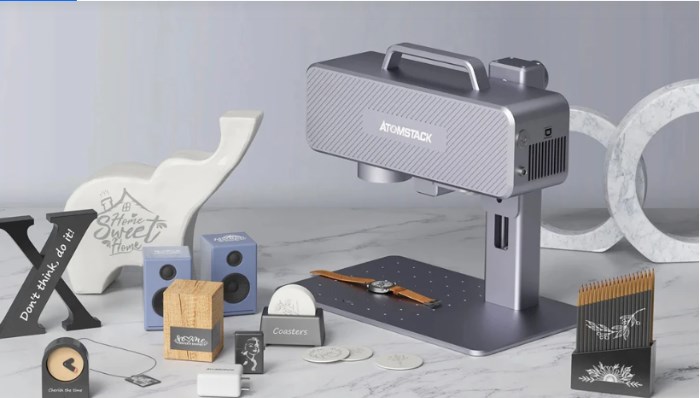

Atomstack M4 Handheld Laser Marking Machine

Atomstack M4 Handheld Laser Marking Machine with Protective Cover, 1064nm Infrared Light Source, 0.02mm Compressed Spot, 12000mm/s Engraving Speed, One Key Repeat Engraving, 70*70mm

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

2 in 1 Laser Marking Machine

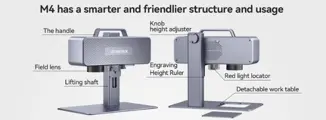

Adopting a highly integrated design with lightweight components, the ATOMSTACK M4 allows you to use it both in desktop and handheld mode, for example marking on non-horizontal surfaces, walls, and facades.

20W Electric Power, 2W Optical Laser Power, 1064nm Infrared Wavelength

It features 20W whole machine electrical power and a 2W optical power with a pulse peak f 20000W. Unlike the blue light source, the 1064nm infrared wavelength is a cold light source, which is suitable for fast marking on all metals and ABS, and even if you accidentally touch the screen, you will not be burned, which can avoid personal injury.

Industrial Galvanometer Technology

Atomstack M4`s industrial-grade galvanometer technology effectively reflects light and allows for a higher speed (relative to gantry-mounted lasers), in addition to a more tuned-in laser frequency since the laser beam source is stationary.

Upgraded Compressed Spot Technology

The ultra-fine laser focus area is reduced to 0.02mm in diameter, and the minimum markable character is about 0.06 mm*0.15 mm (tested with focusing film).

Fine Engraving

0.01-0.02mm ultra-long and ultra-fine end-pumped infrared laser enable every engraving detail to be presented, perfectly presenting 4K-level high pixels.

Precise Positioning

Atomstack M4 adopts a dual-infrared light positioning design, which can accurately locate the marking position without offset.

One-key Repeat Engraving

The marking machine has a one-key repeat marking function, which can repeat the work with one click, without computer operation, and efficiently complete batch customization work.

70*70mm Engraving Area, Easy to Install

There are precision scale lines on the lifting shaft, which is convenient for you to measure the length quickly. The 70*70mm large engraving area can meet your various engraving needs. Besides, the whole structure is designed for quick installation and can generally be installed in 10-20 minutes.

Wide Compatibility

The machine uses mature engraving software and supports Win XP/Win 7/Win 8/Win 10/Win 11. The engraving files support PLT, DXF, BMP, JPG, and JPEG image files; Code39, EAN, PDF417, DM barcode, QR code, and dynamic files.

Specification

General Brand: ATOMSTACK
Type: Laser Marking Machine
Model: M4
Color: Steel Grey
Specification Electric Power: 20W
Laser Life: ≤20000H
Standard Speed: 12000mm/s
Engraving Size: 70*70mm
Marking Repeatability: ≤0.001mm
Total Power: supply voltage 12V, power ≤100W
Data Transmission Method: USB transfer
Maximum Engravable Item Height: 70x70mm
Rack Material: metal
