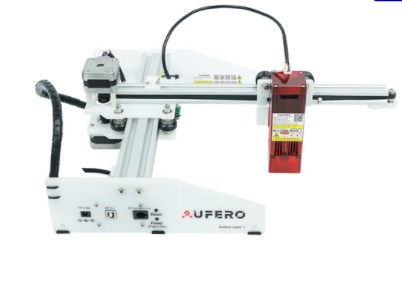

Aufero Laser 1 LU2-4-SF Portable Laser Cutter Engraver

Aufero Laser 1 LU2-4-SF Portable Laser Cutter Engraver Machine 32-bit Motherboad 5,000mm/min

Afhalen is niet mogelijk.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Pre-assembled package→ No need to laboriously learn how to install, easy to use. Suitable for new players and experienced players.

Advanced firmware→ Aufero Laser 1 firmware, smarter, faster, more accurate, and easier to use. Professional motherboard with 32-bit MCU. It can preprocess 32 instructions, support up to 921600 baud rate, more powerful. The engraving speed can be as high as 5000mm/min.

Broad Compatibility→ Aufero Laser 1 can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10, and also support Mac and Linux system (LightBurn, need to be paid), engraving file format supports BMP, JPG, PNG, JPEG, SVG, etc.

5 safety protection→ 1:Active Position Protection; 2:Exposure Duration Detection and Limitation; 3:Laser Beam Safety Guard; 4:24V Power Delivery System; 5:Power control system, if shut down the machine, it would cut the power.

Eye protection design→ Aufero Laser 1 with a protective cover perfectly protects our eyes when working. Without wearing goggles, we and the people around us can watch laser engraving.

Specification

General

Brand: Aufero
Type: Laser Engraver
Model: Laser 1 LU2-4-SF
Color: White

Specification
Motherboard: OLM-PRO-V1.2 Motherboard,32Bits ESP32MCU
Firmware: OLF-V180 seris Firmware
Safety Precautions:
1.Active Position Protection,
2.Exposure Duration Detection and Limitation,
3.Laser Beam Safety Guard,
4.24V Power Delivery System,
5.Power control system, if shutdown the machine, it would cut the power."
Add-ons
1.Ortur Offline Controller
2.Ortur Saftey Enclosure
Frame Materials: Aluminum Profile + Acrylic
Motors: NEMA 17 Stepper Motors
Mechanical Precision: Y:12.5um, X:12.5um
Pixel Accuracy: Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area: 180MM×180MM
Available Laser Modules:
LU2-4-SF Short Focus Laser Module
(Real Luminous Power: 4,500-5,500mw)
Every 50 hours of use, please clean the lens with a medical cotton swab and alcohol
Wave Length: 445±5nm
Focus: Fixed Focus
Control Mode: PWM
Power Rate: S0-S1,000
Engraving Speed: 0-5,000MM/Min
Baud Rate : 115200 - 921600 (Default: 115200)
Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn)
Control Softwares: LaserGRBL (free), LightBurn (Paid Software)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Available Materials of Engraving: Food, MDF, Paperboard, Black Acrylic, Leather, Stainless Steel, Power Coated Metal, Stone, etc.
Available Materials of Cutting: Plywood, Pine Board, Paperboard, Black Acrylic, Leather, Felt Cloth, etc.
Input Voltage: 110V-220V (Compatible)
Power Adapter Output: 24V / 2A
Operating Temp: -20°C-50°C
Weight & Size Product Weight: 1.6Kg
Package Weight: 3.5Kg
Product Size(L x W x H): 31.5x42.2x12.5cm
Package Size(L x W x H): 48x38x17cm

Package Contents

1 x Aufero Laser 1 LU2-4-SF Portable
