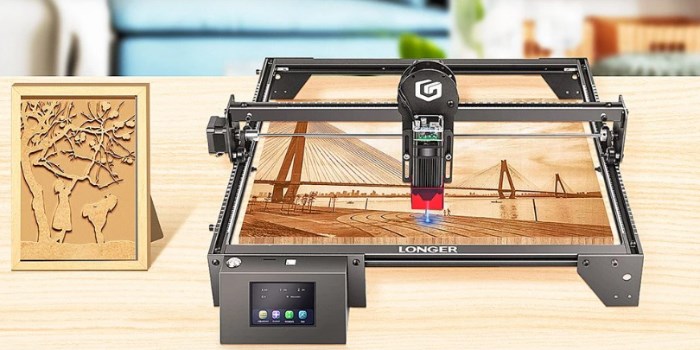

LONGER RAY5 10W Laser Engraver, 0.06x0.06mm Laser Spot

LONGER RAY5 10W Laser Engraver, 0.06x0.06mm Laser Spot, Air Assist, Touch Screen, Offline Carving, 32-Bit Chipset, WiFi Connection, Working Area 400x400mm

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

More Powerful Functions & Wide Applicable Materials
Ray5 10w with 3.5-inch touch screen added new functionality like multiple ways for data transfer and multiple machines control. Compared to other laser engravers, it can engrave up to 1000+ materials.
Ultrafine Laser Point & 10W Powerful Laser Module
With dual beam technology, Ray5 10W has a stronger laser power, which enables better cutting and engraving capacity. It is able to cut 20mm thick wood board and 30mm acrylic. It features 400x400mm engraving size and 10000mm/min engraving speed.
Ray5 adopts the latest compressed laser technology, which generates an ultra-fine laser spot of 0.06x0.06mm, two times thinner than ordinary lasers.
Offline Engraving & Multiple Ways for Data Transfer
It supports offline engraving and cutting functions, so there's no computer connection is needed while engraving and cutting, making the operation easier for you to meet various DIY requirements. Wi-Fi, USB cable, APP, and TF cards are supported to transfer the data.
3 Safety Protection
LONGER RAY5 10W laser engraver is designed with flame protection, move protection, and motionless protection functions. When Ray5 detects any accidental flame while working, flame protection will automatically stop the laser and generate a continuous buzz alarm. When the engraving machine is accidentally displaced or tilted, the machine will automatically shut down for personal safety. And the laser will be turned off automatically when the laser module is frozen for over 15 seconds.
32-Bit Chipset
Ray5 is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with the 8-bit chipsets.
Wide Software Compatibility

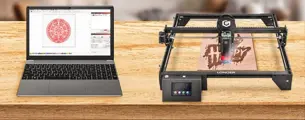

This machine is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7+, macOS, and Linux, supports JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. carving file formats.

Specification
General

Brand: LONGER
Type: Laser Engraver
Model: RAY5 10W
Color: Black

Specification

Model Number: Ray5 10W
Laser Technology: Dioser Technology
Working Area: 400x400mm (15.75x15.75inch)
Laser Wavelength: 450nm
Focal Length: Fixed Focus-50mm
Laser Spot Size: 0.06x0.06mm
Optical Output Power: 10W
Z Axis-Height Range: Up to 47mm
Fastest Working Speed: Speed 10000mm/min
Engraver Output: DC 12V 5A
Engraver Input: AC 110-240V
Software: LaserGRBL and LightBum
Connection: USB/TF Card/WiFi
Carving File Formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
Laser Engraver Size: 586x583x176.5mm (23.07x22.95x6.95inch)

Weight & Size

Package Weight: 4.79kg
Package Size(L x W x H): 62.5x30.5x14cm

Package
