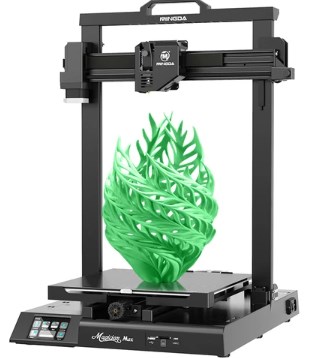

MINGDA Magician Max Modular FDM 3D Printer

MINGDA Magician Max Modular FDM 3D Printer, Auto Leveling, Double Gears Direct Extrusion, Printing Size 320*320*400mm

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Large Printing Size
320*320*400mm, Creates more possibilities

Auto-Leveling
Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor,
16-point precise leveling.

Ultra-Silent Printing
The mechanical structure is ultraquiet, and the chip 2209 is ultra-quiet. Ultra-quiet TMCUse TMC Stepper motor drivers, super quiet and noise reduction, running more stable,<50dB silent printing

Ready to Print
One step assemble, ready to print

Glass Heat Bed
The 4th generation of glass heat bed cold glue installation, easy to take the model and scratch proof.

Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, which cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion
Conveying material uniform without winding

Automatic Filament
Broken material can be automatically detected

Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers, Super Quiet and Noise Reduction, running more stable,≤50dB silent printing

The newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M; Cortex M4 CPU with FPU and DSP instruction, memory protection unit

Multi Connection
Support SD card, USB, and USB-C supports online printing

Dual Z-Axis with Synchronous Belt
Improve the accuracy, and keep the "layer shift" away.

Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

3.5" Large Touch Screen
The screen adopts a new UI interface, manipulates photos, and switches to multiple languages. New interface; large screen; simple operation.

Build-in Tool Box
Convenient after using the tool

Specification

General

Brand: Mingda
Type: 3D Printer
Model: Magician Max
Color: Black

Specification

Print Technology: FDM ( Fused Deposition Modeling)
Build Volume: 320(L)*320(W)*400(H)mm
Print Resolution: ± 0.1mm
Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
Nozzle Number: Single
Nozzle Diameter: 0.4mm
Print Speed: <200mm/s (recommended 60 - 80mm/s)
Support Filaments: PLA, TPU, ABS
Slicing Software: Cura
Input Formats: .STL, .OBJ, .AMF
Output Formats: GCODE
Connection Mode: SD Card, U Disk, USB-C
Input voltage: 100/240 V AC, 60/50Hz
Output voltage: 24V/14.6A (350W)
Ambient operating Temperature: 5°C - 40°C
Operational Nozzle Temperature: max ≤260°C
Operational Hot Bed Temperature: max ≤110°C

Weight & Size Product Weight: 10kg
Package Weight: 14kg
Product Size(L x W x H): 555x430x660mm
Package Size(L x W x H):
