NEJE 3 MAX E30130 Portable Laser Engraving

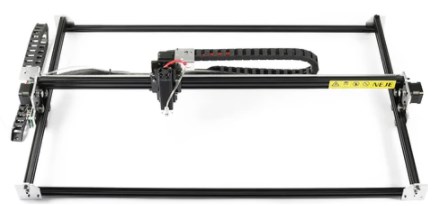

NEJE 3 MAX E30130 Portable Laser Engraving Machine Engraving Area 460 x 810mm

Afhalen is niet mogelijk.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

The standard area is 810*460, and the extended Y-axis track kit provided by NEJE can be extended to a larger area to meet the needs of large-area engraving and cutting.

Only 6 screws can complete the basic installation, and the whole machine has passed the strict quality control procedures of NEJE to ensure the integrity of the quality.

The high-precision CNC metal + CNC PC composite frame structure ensures the structural strength and the track fitting accuracy and smoothness;

Adjustable mechanical calibration to ensure precise metal fit.

Rich expansion accessories make the operation more professional, automatic and safe.

Brand new NEJE E30130 intelligent high power module

The E30130 module adopts the optical compression technology of the outer cylindrical lens to obtain a smaller and square fixed focal length spot, and is equipped with an inner cavity air assist to make the engraving and cutting easier.

Internal thread high-efficiency heat dissipation design effectively stabilizes power and supports long-term use.

The built-in MCU of the module adjusts the work of the module to obtain a quieter operating experience.

Enhanced anti-static and anti-surge performance, more comprehensive protection of laser from environmental damage.

The module provides 2 years free warranty.

New 32-bit 200MHz processor+BLE+MEMS mobile control system, support NEJE Win software, NEJE Android APP, LseerGRBL, Lightburn. Support NEJE OTA software and firmware upgrades, providing users with more surprises and value.

In NEJE mode, after transferring files to the device, you can unplug the USB cable and use it offline without occupying the computer or mobile phone.

Optimized the GRBL firmware to better adapt the experience of diode lasers, and optimized the automatic control and interaction experience in laserGRBL and lightburn. For example, low light adjustment, air assist and smoke exhaust system automatic control.

Specification

General

Brand: NEJE
Type: Laser Engraving Machine
Model: NEJE 3 MAX E30130

Specification

Frame Size (L - W -H): 590x980x160mm
Working Size ( X - Y): 460 x 810mm, area extended design
Dot Pitch: 0.075mm
Pixel: 6133 x 10800 px
Frame Material: All-aluminum alloy and PC material hybrid frame
Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly
Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving: Yes
Motor Size: 42 x 42 x 40mm
Motor Drive Current: 0.9A
Module Height Adjuster: Yes
Limit Switch: Yes
Home: Rear Left
Origin: Front Left
Max Move Speed: X:1000mm/s(with A40640 module 204g)
Y:750mm/s
Control System
MCU: 32-bit MCU
BLE: Yes
MEMS: Yes
Input: 12V 5A
Compatible Modules: All NEJE 12V 4pin Laser Moudle
ON/OFF Switch Yes
