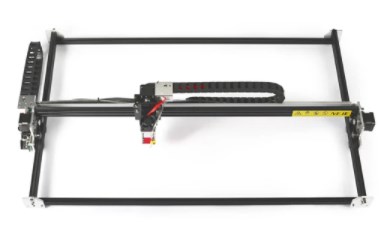

NEJE 3 MAX Laser Engraver, A40640 Dual Laser Beam Module Kit

NEJE 3 MAX Laser Engraver, A40640 Dual Laser Beam Module Kit , NEJE WIN Software, Android App Control, 460x810mm

Afhalen is niet mogelijk.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Module: A40640, When focusing to 55mm position (lens-to-focus distance), you can get a 0.18x0.18mm focal point and be able to cut material up to 18-20mm (requires accurate focus, 0.6-1.5mpa air assist to align the cut).

The closer the focal point, the thinner the cutting thickness. At present, the FAC technology adopted by NEJE is already the smallest focus solution on the market, and those so-called 0.08mm and 0.1mm need to be falsely marked!

Compared with NEJE 2s MAX, the operating experience is greatly optimized, the low-light display of laserGRBL and lightburn in GRBL mode is increased, and the low-light intensity can be adjusted through laserGRBL.

The machine is powered on Afterwards, the motor will be automatically locked, so that the work can be operated twice after operation without repositioning; the interactive experience has been optimized, and the interactive communication with laserGRBL and lightburn software has been optimized.

BLE-based wireless control, supports NEJE APP wireless control.

Support NEJE 2S Max replacement of the mainboard. The device only adjusts the position of the YL and YR motor sockets;

More abundant functions are: added M8, M7, Door functions, and all are compatible with NEJE software, laserGRBL, Lightburn, M8 generally achieve air-assisted Automatic control, so as to realize the dynamic control of each process of the work; M7 function is generally used to realize smoke control; Door function can only be stopped due to the problem of the message mechanism of the lightburn software, but can be suspended in NEJE mode or LaserGRBL mode , after canceling the door, you can continue to work without losing the work; NEJE provides M8, M7, Door function expansion accessories, including air valve switch and relay switch, you can use these accessories to realize the air compressor air circuit, smoke exhaust fan circuit , automatic control of the oxygen machine circuit.

The new NEJE V6.1.2 software supports area expansion, you can simply modify the length of the track to achieve area expansion, NEJE also provides the option of extended track.

Built-in sensor protection, currently in NEJE mode, when the machine angle changes, the device will automatically stop working;

The top 32-bit processor has replaced the previous two The chip processing solution is more reliable, support OTA upgrade in NEJE mode, NEJE continuously upgrades software and firmware Provide more surprising and useful interesting features.

Specification

General

Brand: NEJE
Type: Laser Engraver
Model: 3 MAX A40640
Color: Black

Specification

Speed of the Fan: 10600RPM(Double ball bearing)
Interface: PH2.0 4Pin
Drive Design: Built-in
Input: 12V 4A
Optical Power:10W
Wavelength:450nm
Number of Diodes: 2
Light Source: 2x LD +C-Lens
Min Focus Spot Size: 0.04 x 0.04mm
Temperature
