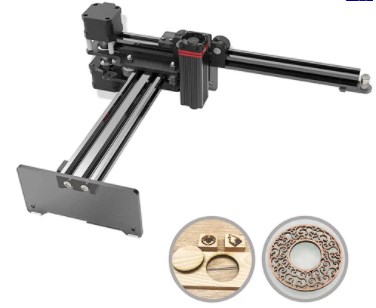

NEJE Master 2S 20W Laser Engraver and Cutter N30820 Laser

NEJE Master 2S 20W Laser Engraver and Cutter N30820 Laser Module Lightburn Bluetooth APP Control 170x170mm

Afhalen is niet mogelijk.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Upgraded 450nm 20W Laser Tube

Specialized Motherboard with 32Bits MCU, more powerful. New version 20W Master Laser CNC Cutter with APP Control (for Windows, Mac , Android) excels in fast cutting and can cut materials from 3mm to 8mm thickness. t can cut wood (3-8mm). Depth of engraving (0.5-3mm wood), thickness of cutting(2mm). 4Pin laser design with temperature sensing and surge protection design can effectively extend the laser life.

Off-Line Working and Large Working Area

Multi-functional keys can support offline work: press 1 time to reset automatically, press 2 times to perform frame positioning, press 3 times to start engraving, press 4 times to stop engraving. Engraving range: 150 * 150mm or 160mm x 160mm in GRBL mode , accuracy up to 0.075mm point distance, 2000*2000px ultra-clear printing effect

Protection Function

Built-in gyroscope protection device. When the laser engraver machine is running, the built-in gyroscope will record the working position at the beginning. In the event of an accidental touch or machine shift, the machine will automatically stop working to prevent an accident.

Easy to Operation

Provide professionals with the ability to directly parse the works designed by Inkscape and CAD software, directly execute .nc files and .dxf files, and execute them accurately. You can do the complex edits in PS / Inkscape / CAD or similar and just burn with the included program.

Full-featured & Powerful

4A load current, capable of delivering powerful output power, 15,000 rpm fan and exquisite heatsink design, can keep temperature safe control within 60 degrees Celsius, maximizing protection laser life, no matter how high-intensity you use, no matter how you work how long. Full-featured that directly execute .BMP, .JPG, .PNG files and NEJE CLOUD provides thousands of engraving materials and resources to download and keep updating.

Specification

General Brand: NEJE
Type: Laser Engraver
Model: Master2S 20W
Color: Black
Specification
Material: Aluminum alloy + stainless steel + CNC composite
Control Model: NEJE windows software, NEJE android APP, “NEJE Wireless” APP for iOS and macOS, Benbox for windows, LaserGRBL for windows. OFF-Line
Support System: Win7 / Win8.1/ Win10 / Android Phone ( Android 5.0 and above ), iOS Phone ( ios10.0 and above ), MacOS ( 10.15 and above )
Applicable Materials: Alumina oxide Metal and other non-reflective materials, (Wood, gray paper, leather, bamboo, blackening plastics, rubber, ect.), Can not work on the stainless steel, alloy, glass, and some reflective materials.
Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Wavelength: 450nm
Input power: approx. 12V2A ≈ 20W (without fan power)
Output optical power: 5.5W
Image Format: BMP .JPG .PNG .NC .DXF
Image Size:2266 * 2266pixels / 0.075mm point distance
Machine Supply Voltage: 12V3A
Control line installation method: pluggable
Focus range: 30-50mm
Best focal length: 40mm from the light exit
