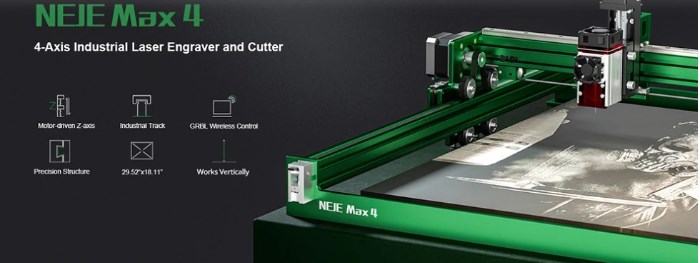

NEJE Max 4 Laser Engraver Cutter, 12W Laser Power

NEJE Max 4 Laser Engraver Cutter, 12W Laser Power, A40640 Laser Module, Auto Air-Assist, 0.04*0.06mm Focus, 4-Axis Control, GRBL Wireless Control, Motor Driver Z Axis, Works Vertically, 750*460mm

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Motor-Driven Z-Axis

The NEJE Max 4 laser engraving machine has been fully upgraded.

It adopts electric Z-axis with high precision, which can load up to 1kg and travel 45mm.

This electric Z-axis realizes high-precision repositioning with an accuracy of 0.001 mm.

In the LightBurn software, the focus distance of each layer can be set automatically, and the thicker material can be cut efficiently through the control of the Z-axis.

Four-Axis Control System

NEJE Max 4 is the first laser engraving machine on the market that can realize 4-axis collaboration.

Through the collaboration of the X-axis, Y-axis, Z-axis, and A-axis, it can automatically complete more precise processes.

Through expandable functions, the machine can automatically complete M7, and M8 auto smoke discharging, air assist, door safety functions, and visual positioning functions, and perfectly integrated with various extended functions of LightBurn.

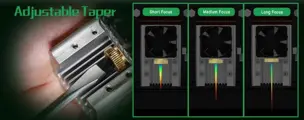

High Power Zoom Laser Module - A40640

Matched with the adjustable A40640 12W zoom module, NEJE Max 4 can realize a focus of 0.04x0.06mm.

A40640 is the most widely used high-power zoom module.

The short focus is suitable for carving and cutting metal, acrylic, MDF, and other high-density materials, and the long focus is suitable for cutting thick wood and other materials.

High Precision & High Stability

Equipped with an industrial-grade maintainable track, NEJE Max 4's service life is up to 20,000 hours.

Through reasonable design and precise processing technology, the precision of the frame is improved, and the mechanical precision reaches 0.01 mm.

The adaption of a higher hardness alloy frame effectively eliminates the vibration of the equipment and improves the stability of the machine.

Support Wireless Offline Work

NEJE Max 4 supports wireless offline work.

You can create everything you want in LightBurn and use NEJE software to operate the machine wirelessly.

Offline work distance within 10 meters is available, so you can operate the machine anytime and anywhere without computer restrictions.

Specification

General Brand: NEJE
Type: Laser Engraver
Model: A40640
Color: Green
Specification
Laser Engraver:
Frame Size (L*W*H): 970x582x60mm
Working Area(X*Y): 750 x 460mm, Extends to 750x1030mm
Drive Accuracy: XY-axis repeat positioning accuracy 0.01mm, Z-axis 0.001mm
Number of Controllable Axes: X, Y, Z, A four axes
Input Voltage: 12V / 24V, Match according to module voltage
Limit Switch: Yes, both XYZ
Max Move Speed: 750mm/s
GRBL Offline Control:
