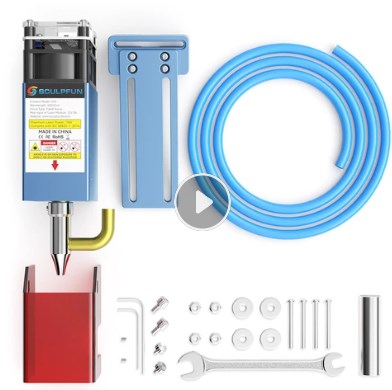

SCULPFUN S10 10W Laser Module Set, High Speed Air Assist

SCULPFUN S10 10W Laser Module Set, High Speed Air Assist, Fixed Focus, 0.08mm Ultra-Fine Compressed Spot, Adjustable Laser Eye Shield

Afhalen is niet mogelijk.

Overzicht van alle producten vind je op eu9.nl

Bij categorie, alle merken met de kortingen.

Alle producten zijn nieuw, en het heeft ook geen zin om erop te bieden, je kan wel even checken

wat de prijs is op dit moment.

Je kan alleen online bestellen, stuur even een bericht om de link aan te vragen.

Alle aangeboden producten komen uit Warehouses die zich in EU landen bevinden, dus er zijn geen invoerkosten.

Geschatte levertijd is anders per warehouse [Land] reken op 3 - 10 werkdagen.

De aangeven prijzen kunnen afwijken omdat het om aanbiedingen gaat, maar dat wordt al vermeld zodra u de link van ons krijgt wat de prijs is.

Betalen kan met Ideal, Paypal, Klarna en alle andere kaarten.

Verzendkosten vanaf gratis tot .... dat is ook per item verschillend.

Highlights

Powerful High-speed Air Assist
S10 is equipped with a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.
Widely Compatible Design
The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR(12V Version) laser engraving machine, or other DIY type machines.
Ultra-thin High Density 10W Laser Beam Shaping Technology
The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9 , which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.
Faster, Stronger, Cleaner
Combining advanced high-speed air assist and 10W high density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.
Adjustable Laser Eye Shield
The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.
General 12V/PWM Modulation Board
It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

Specification

General

Brand: SCULPFUN
Type: Laser Module Set
Model: S10 10W
Color: Sky Blue

Specification

Applicable machines
Laser engraving machines such as SCULPFUN S9/S6pro/S6,ATOMSTACK A5/A5Pro,ORTUR(12V Version), ELEKSMAKER, or DIY 3D printers, CNC machine tools.
How to judge whether the S10 laser is suitable for use? You need to pay attention that the input voltage of the S10 laser is 12V, and the S10 is a 3pin interface, you can check the detailed pictures.
Engraving&cutting materials
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut
