Triumph 1923 Ricardo 499 cc 1 cyl OHV 3501

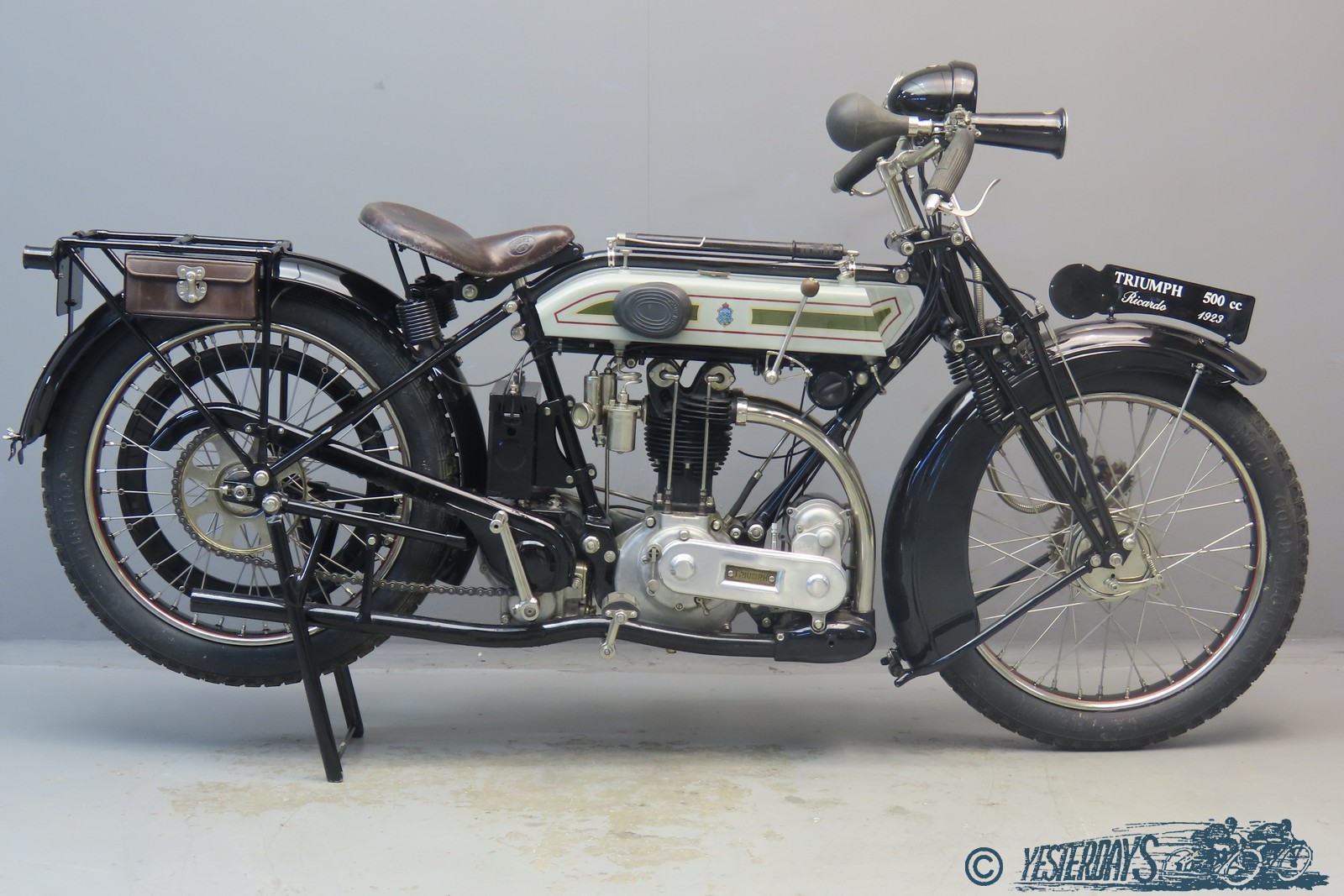

Triumph 1923 499 cc OHV four valve “ Ricardo” frame # 330308 engine 91188 PRI

Triumph decided to enter the 1921 TT with an overhead valve model and Ricardo and Co. Ltd. were given the order to develop a four valve racing engine. That is to say, the engine bottom half to be used was essentially that of the side valve model SD and many cycle parts were SD too, so only cylinder and head were to be designed newly.
The four valves were not arranged radially but were set two by two and the heads were sunk below the level of the combustion chamber so that the first part of the opening and the last part of the closing were practically ineffective; cam design was such that the valves were gently started and gently seated, and the idea was that the effective valve opening and closure was sudden. An effect of this design was that the valve operation was very quiet. When testing for the 1921 TT the rocking front fork (already used by Triumph from veteran days) proved unsuited for high speeds, so side spring Druid forks were fitted. The new machine did not prove very successful in the race but the Ricardo went in production for the 1922 season. In the next few years a lot of development work was done to the engine but that never led to real racing successes. As a sporty touring mount the Ricardo was more successful and it stayed in production till 1927. This goodlooking vintage sports machine has undergone an extensive high-quality restoration some 30 years ago and is in excellent condition; the electric wiring is fitted but needs to be connected. She comes with Stewart 60 mph speedo, top tube mounted “Triumph” tyre pump and Lucas bulb horn. The Lucas electric lighting system, at the time an expensive luxury, was a standard fitting to the Ricardo.
