Suction dredger 8 inch

N.o.t.k.

Prijs:
N.o.t.k.
Sinds:
3 maanden+
Gezien:
26 keer
Adverteerder:
jan willem kiezebrink
Plaats:
Zuidbroek
Telefoon:
+31657542770
Activiteit:
6 jaar actief op Marktnet

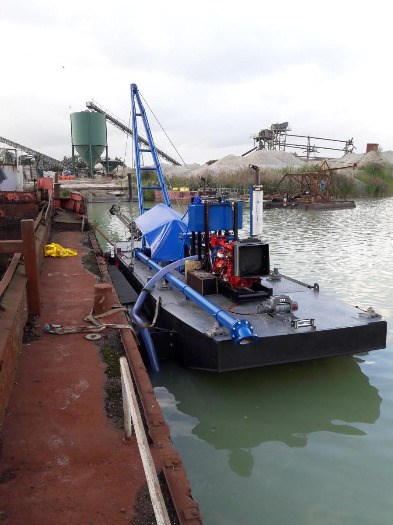

For sale a cutter suction dredger 8 inch for sand, gold or gravel dredging works. Capacity 8 Warman dredgepump 800 m3/h with 210kW Doosan mechanical engine.

This Dredge is specially designed to dig into the shallow waters of rivers, lakes, channels and docks, and it can be used for the cleaning of reservoirs, docks, piers and harbors.

Specs:

Length overall incl. ladder: 14.20

Length over pontoons: 11.50

Dredgepump: Warman high pressure gravel

The height of the water column: 55 m

Diameter of the solid particles (max): 127 mm

Two Side wire winches: 2.5 Kn

One ladder winch: 4.5 Kn

Ladder construction dredging depth (45°): 12 mtr (Max 18 mtr)

Capacity dredge pump 800 m3 / hour.

Pump distance 1000 mtr.

Auxiliary Jet water pump for more production. 125 m3/hour @8 Bar pressure

Including high pressure water jet ring (80 mm) with 4 nozzles

Suction pipe diameter: 200 mm

Discharge pipe diameter: 150 mm

Installed Power: 285Pk (210kW) mechanical engine

Portable in one container / transport.

Information: +31657542770

Opties:

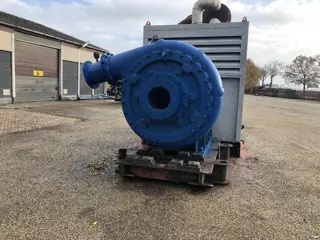

Boosterstation

Cutterhead 30 Kw

Spuds

Workboat

Electric drive

Hydraulic power pack

Bigger Jetwater pump
