Cnc bedfreesmachine Parpas SL 100/3000

Code 111279

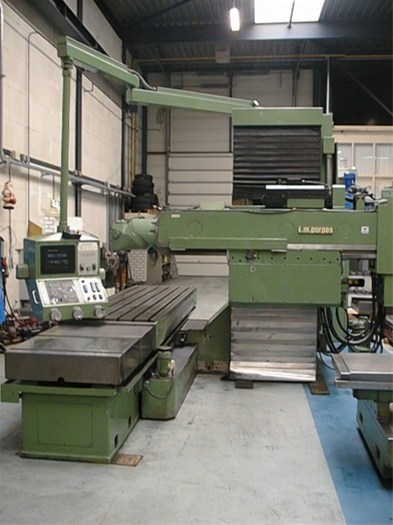

Description CNC Bed milling machine

Make PARPAS

Type SL 100/300

Serial no. 100 – 9040

Year 1990

Control Heidenhain TNC 355

Table size 3400 x 1000 mm

Longitude traverse table (X) 3000 mm

Cross traverse ram (Y) 1000 mm

Vertical traverse milling head (Z) 1500 mm

Spindle taper ISO 50

Max. weight on table 5000 kg

Spindle speeds stepless ( in program ) in 2 ranges

Spindle speeds 1 – 2000 rpm

Feeds dir. Progr. X-Y-Z 1 – 5000 mm/min

Rapids Longitude (X) 8 m/min

Cross (Y) 8 m/min

Vertical (Z) 8 m/min

Weight 19.000 kg

Dimension L x W x H 5000 (max.8000) x 3300 (max.4300) x 3650 mm

Spindle motor 25 kW

Power connection 35 kW

Voltage 380 Volt

Accessories Automatic Universal millinghead with ISO 50

Tool clamping

Coolant

Condition Machine is in good condition
